  • Grinding
  • Depressed Center Grinding Wheel
  • Depressed Center Grinding Wheel
  • Metal Steel
  • Carbon Steel
  • Tool Steel
  • STAINLESS
  • Cast Iron
  • Stainless Iron
  • Titanium
  • HSLA Steel
  • Welding Bread Removal(Large)
  • Deburring(Large)
  • Spatter Removal
  • Grooving(Large)

shapeShape

・・・ Type 27
Adhesive・・・BF

Size

  • 100Ф
  • 125Ф
  • 150Ф
  • 180Ф
  • 205Ф

【High quality performance and long life】

・Highest removal performance among Resibon grinding wheels
・Extra-long life
・High quality zirconia grains

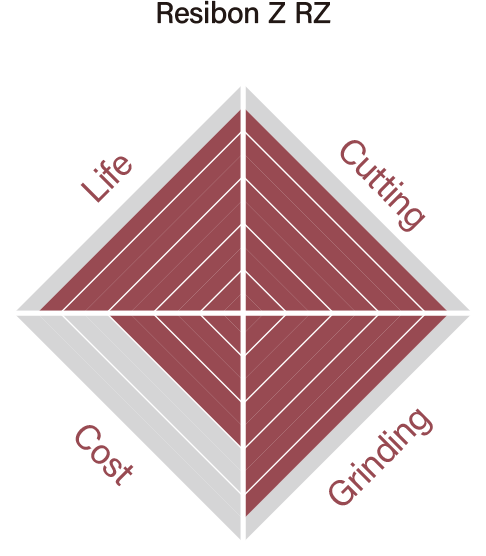

レーダーチャート

Specification

Part No.

Size (mm)

(Dia. x Thick x Hole size)

Grain Grit Size Hardness In Stock Inner Qty. Outer Qty. Max. Operating
Speed (min-1)
Max. Operating
Speed (m/s)
RZ1006-24 100x6x15 Z 24 P 25 100 13,750 72
RZ1006-36 100x6x15 Z 36 P 25 100 13,750 72
RZ1256-24 125x6x22 Z 24 P 25 100 11,000 72
RZ1506-24 150x6x22 Z 24 P 25 50 9,160 72
RZ1806-24M 180x6x22 Z 24 M 25 50 7,630 72
RZ1806-24 180x6x22 Z 24 P 25 50 7,630 72
RZ1806-24Q 180x6x22 Z 24 Q 25 50 7,630 72
RZ1806-36 180x6x22 Z 36 P 25 50 7,630 72
RZ2056-24Q 205x6x22 Z 24 Q 25 50 6,700 72
RZ2056-24S 205x6x22 Z 24 S 25 50 6,700 72

〇:Available  none:Build to order
