Shape ・・・ Type 27
Size
【125mm and 150mm diameter Skill Touch series】
・125mm and 150mm diameter of Skill Touch series
・Natural flexibility due to Skill Touch feature and special wheel shape
Part No. |
Size (mm) (Dia. x Thick x Hole size) |
Grain | Grit Size | In Stock | Inner Qty. | Outer Qty. | Max. Operating Speed (min-1) |
Max. Operating Speed (m/s) |
||||
Steel, Cast Iron | ||||||||||||
R21252-AC46 | 125x2x22 | AC | 46 | 〇 | 25 | 100 | 11,000 | 72 | ||||
R21252-AC60 | 125x2x22 | AC | 60 | 〇 | 25 | 100 | 11,000 | 72 | ||||
R21252-AC80 | 125x2x22 | AC | 80 | 〇 | 25 | 100 | 11,000 | 72 | ||||
R21252-AC100 | 125x2x22 | AC | 100 | 〇 | 25 | 100 | 11,000 | 72 | ||||
R21252-AC120 | 125x2x22 | AC | 120 | 25 | 100 | 11,000 | 72 | |||||
R21252-AC150 | 125x2x22 | AC | 150 | 25 | 100 | 11,000 | 72 | |||||
R21253-AC24 | 125×3×22 | AC | 24 | 25 | 100 | 11,000 | 72 | |||||
R21253-AC36 | 125×3×22 | AC | 36 | 〇 | 25 | 100 | 11,000 | 72 | ||||
R21253-AC46 | 125×3×22 | AC | 46 | 25 | 100 | 11,000 | 72 | |||||
R21502-AC46 | 150×2×22 | AC | 46 | 25 | 100 | 9,160 | 72 | |||||
R21502-AC60 | 150×2×22 | AC | 60 | 〇 | 25 | 100 | 9,160 | 72 | ||||
R21502-AC80 | 150×2×22 | AC | 80 | 〇 | 25 | 100 | 9,160 | 72 | ||||
R21502-AC100 | 150×2×22 | AC | 100 | 25 | 100 | 9,160 | 72 | |||||
R21502-AC120 | 150×2×22 | AC | 120 | 〇 | 25 | 100 | 9,160 | 72 | ||||
R21503-AC36 | 150×3×22 | AC | 36 | 〇 | 25 | 100 | 9,160 | 72 | ||||
Stainless Steel/INOX, Alloy Steel | ||||||||||||
R21252-WA46 | 125x2x22 | WA | 46 | 〇 | 25 | 100 | 11,000 | 72 | ||||
R21252-WA60 | 125x2x22 | WA | 60 | 〇 | 25 | 100 | 11,000 | 72 | ||||
R21252-WA80 | 125x2x22 | WA | 80 | 〇 | 25 | 100 | 11,000 | 72 | ||||
R21252-WA100 | 125x2x22 | WA | 100 | 〇 | 25 | 100 | 11,000 | 72 | ||||
R21252-WA120 | 125x2x22 | WA | 120 | 25 | 100 | 11,000 | 72 | |||||
R21253-WA36 | 125x3x22 | WA | 36 | 25 | 100 | 11,000 | 72 | |||||
R21502-WA60 | 150x2x22 | WA | 60 | 25 | 100 | 9,160 | 72 | |||||
R21502-WA80 | 150x2x22 | WA | 80 | 25 | 100 | 9,160 | 72 | |||||
R21502-WA120 | 150x2x22 | WA | 120 | 25 | 100 | 9,160 | 72 | |||||
R21503-WA36 | 150x3x22 | WA | 36 | 25 | 100 | 9,160 | 72 | |||||
Aluminum, Brass, Non-ferrous Metals (Gun Metal, etc.) | ||||||||||||
R21252-CC60 | 125x2x22 | CC | 60 | △ | 25 | 100 | 11,000 | 72 |

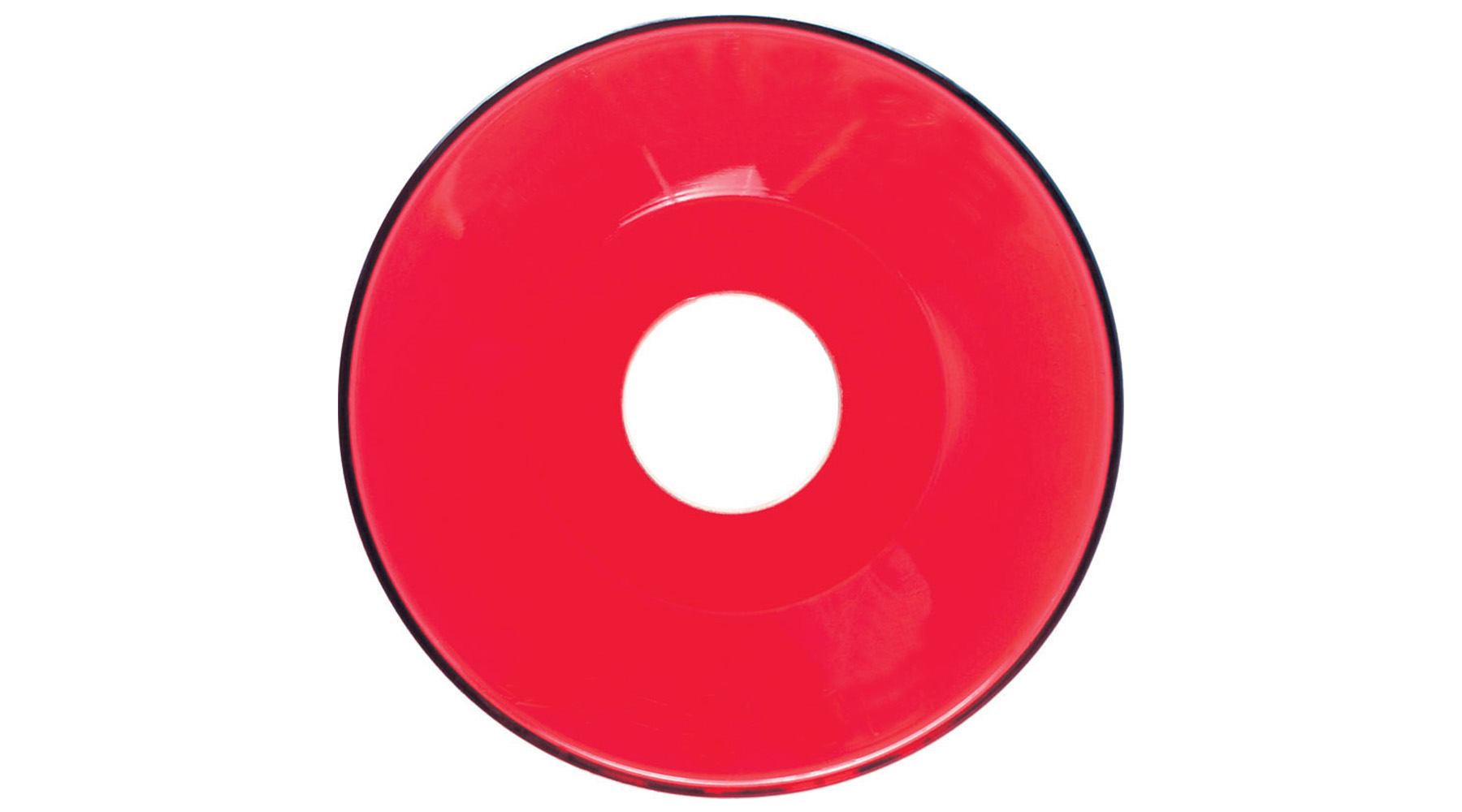

*Please use with original back-up pad (Red)
〇:Available none:Build to order
